Used Equipment in Stock



As well as sourcing equipment for a client, from time to time we also have machines in stock. Contact us to discuss detailed specification and process implementation in these machines.



This page will be updated occasionally, but as of Autumn 2017, we have the following machines available for sale:

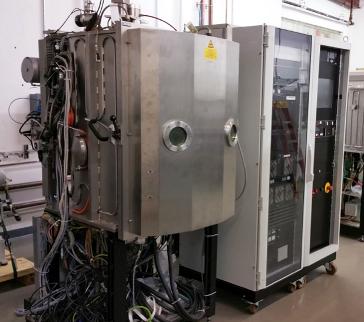

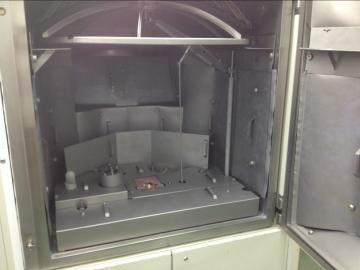

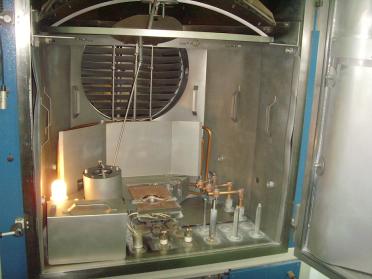

Satis 1200 DL Box Coater

























Satis 900D Box Coater





























Leybold LAB600 Box Coater

































SCL CD1000 Ultrasonic Cleaning and Hardcoat Line

Balzers oil diffusion pump

Edwards E2M80 rotary pump

Edwards EH500 roots pump

Meissner trap pumped with Polycold PFC1100ST

Temescal STIH270-2CK/2CKB electron gun

Temescal Simba 2 high voltage power supply

Satis e-gun crucible indexer model TRC3460

2 x thermal boat evaporators

Inficon XTC/C deposition controller with dual crystal head

Commonwealth Scientific Corporation MKII ion gun

Commonwealth Scientific Corporation power supply

Balzers  RVG040/RME010 gas inlet control system

Balzers  IMG300 pressure measurement controller

Rear surface heaters

Satis control system with ophthalmic processes

Full set of manuals

Manufactured 2002

Documented upgrades and ultrasonic transducer/pipe/bath replacement, the last being December 2015

Six ultrasonic tanks

Two rinse tanks

Three hard coat tanks

350 lens holders with bath and loading tools

100kg Permutit resin

Dual electron beam evaporators (ESV 6 270)

Electron beam controllers EGC28

Cathode heaters NDRG 0850

10 KV DC high voltage psu NHRR 01001k

Gridless ion source Mark II

Ion source power supply ISP 301

Ion source controller ISC 301A

Edwards E2M80 PFPE rotary pump

QMB250 roots pump

Leybold Turbovac T1600 turbo pump

Bronkhorst MFC's O2, Ar, N2

2 off Inficon crystal monitors

Inficon IC5 deposition controller

Omron PLC and Profibus control with touchscreen

Rotating dome substrate holder

2 Sets of chamber shielding

Full set of manuals

Balzers oil diffusion pump

Edwards E2M175 rotary pump

Edwards EH1200 roots pump

Meissner trap pumped with dual output Polycold PFC1100ST

Temescal STIH270 electron gun

Temescal Simba 2 high voltage power supply

2 x thermal boat evaporators

Inficon XTC/C deposition controller with dual crystal head

Commonwealth Scientific Corporation MKII ion gun

Commonwealth Scientific Corporation power supply (Satis branded)

Balzers RVG040/RME010 gas inlet control system

Balzers IMG300 pressure measurement controller

Satis control system with processes

Full set of manuals
